PCB & solder inspection
First-article checks, rework verification and incoming QC — with compare mode against a known-good reference.
The bench specialist. A 5-megapixel CMOS sensor, 50–250× magnification and a stable stand turn this into the microscope you leave plugged into the QC station — always ready, always in focus, always documented.
At QC stations the workflow is repetitive: inspect, measure, capture, move on. The DM050U is built for exactly that loop. The 5-megapixel sensor captures 2592×1944 stills — enough headroom that a rejected part can be re-examined on a larger screen later, without dragging the part back under the lens.
Because it is USB-powered, there is no battery to manage and no wireless handshake to babysit. It wakes with the PC, appears as a standard video device, and behaves identically every single shift — which is precisely what a documented inspection process needs.
| Model | UB-DM050U |
| Image sensor | 5 megapixel CMOS (2592×1944 stills) |
| Magnification | 50×–250× |
| Max frame rate | Up to 30 fps |
| Connection | USB 2.0, bus-powered |
| Supported systems | Windows 7/8/10/11 · macOS |

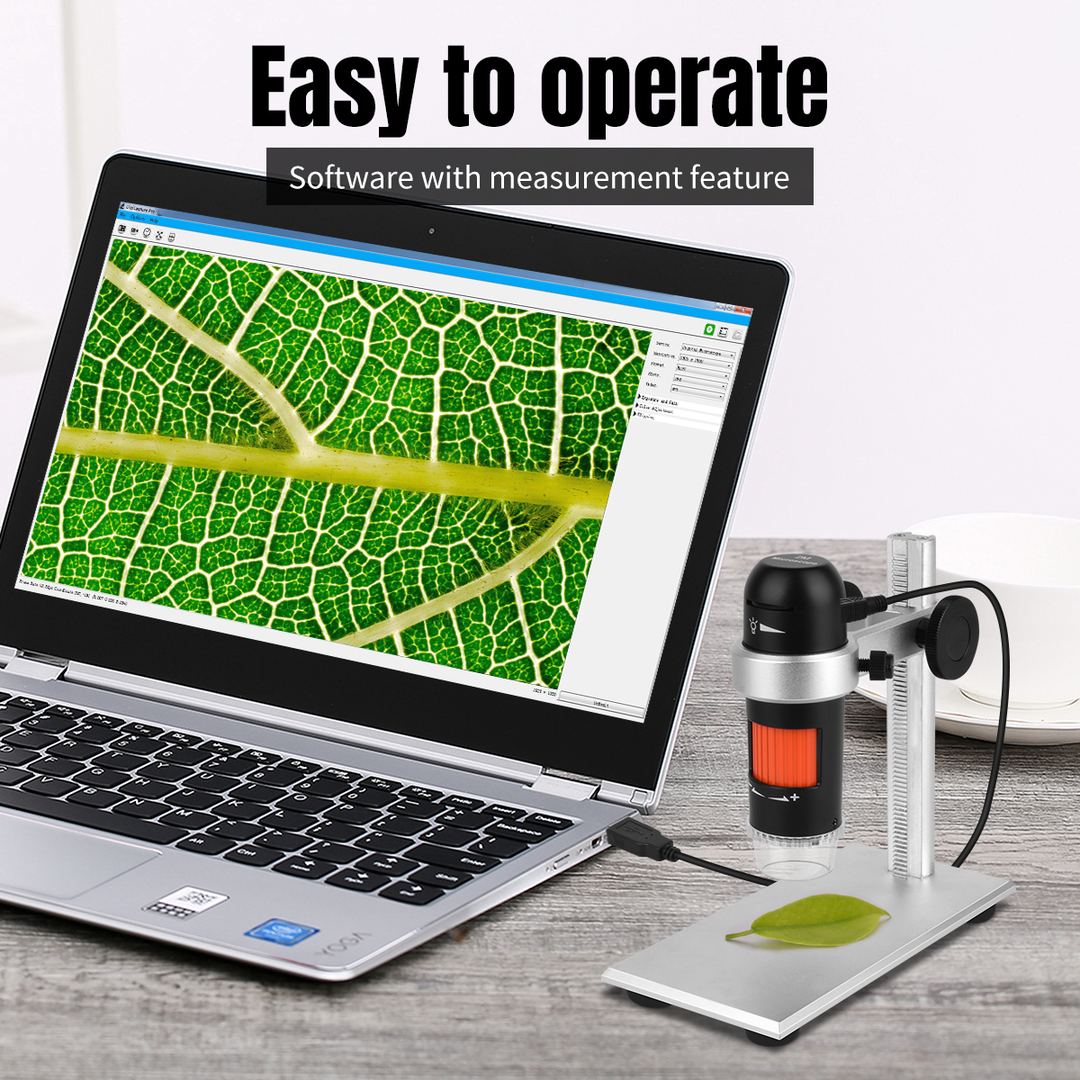

| PC software | Included — measurement, compare, timed/batch capture, 16-language UI |
| Illumination | Adjustable white LED ring |
| Stand | Aluminium, height-adjustable |
| Certification | CE / FCC / RoHS |
| Customisation | OEM / ODM — logo, packaging, software branding, firmware |
| Warranty | 1 year |
First-article checks, rework verification and incoming QC — with compare mode against a known-good reference.
Weave density, print registration and surface defect documentation with calibrated measurements on file.
Steady, wired operation for demonstration benches and documentation-heavy lab work.
Yes — it enumerates as a standard UVC video device, so any camera app can display it. Install the included PC suite when you need measurement, compare and batch capture.
Yes. White-labelling the PC suite — name, icon, splash, UI accent colour — is a standard OEM option, and a fully customised application is quoted via the software & SDK page.
Yes — the UB-DM023A covers WiFi operation with the same optical philosophy. For mixed fleets, many customers deploy DM050U on benches and DM023A in the field.
Tell us quantity and target market — we reply within one business day with tiers and lead time.
