Solder joint inspection, BGA rework verification and connector checks — the polarizer kills glare from lead-free solder and flux residue.

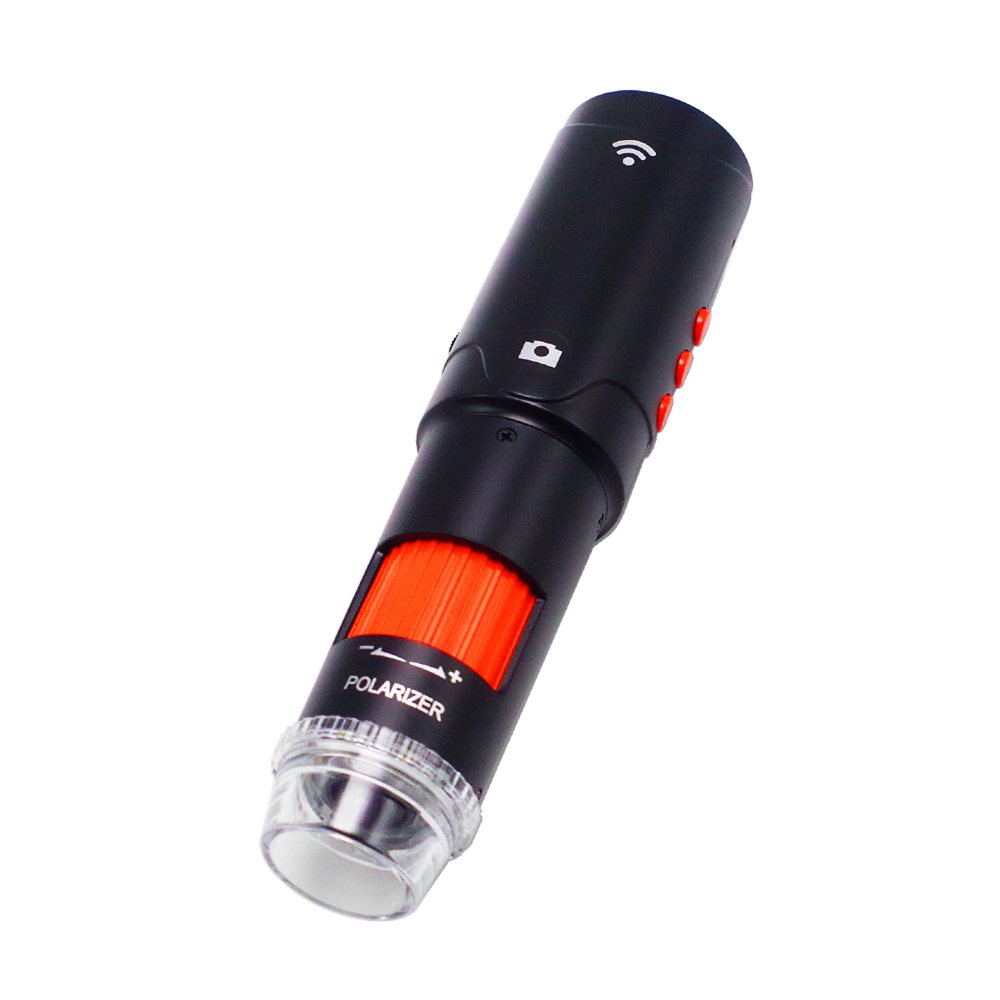

Cut the cable, keep the detail. A true 2-megapixel handheld microscope that streams 1080P over WiFi to phones and tablets — or plugs into a PC over USB — with a switchable polarizer for glare-free imaging of metal, solder and glossy surfaces.
The UB-DM023A was designed around a simple observation: inspection does not happen at a desk. A technician under a machine, a jeweller at a trade show, a teacher walking between benches — none of them want a cable dictating where they can stand. So the DM023A connects wirelessly to the phone or tablet already in their pocket, and keeps a wired USB mode for the bench when they sit down.
Under the housing is a genuine 2-megapixel CMOS sensor with an optical glass lens — no interpolated magnification numbers, no software upscaling pretending to be detail. What you count on the datasheet is what resolves on screen.
| Model | UB-DM023A |
| Magnification | Real 10×–200× (based on 24″ display) |
| Image sensor | 2 megapixel CMOS |
| Photo / video resolution | 1920×1088 / 1280×720 / 864×480 |
| Max frame rate | 25 fps at 2MP output |

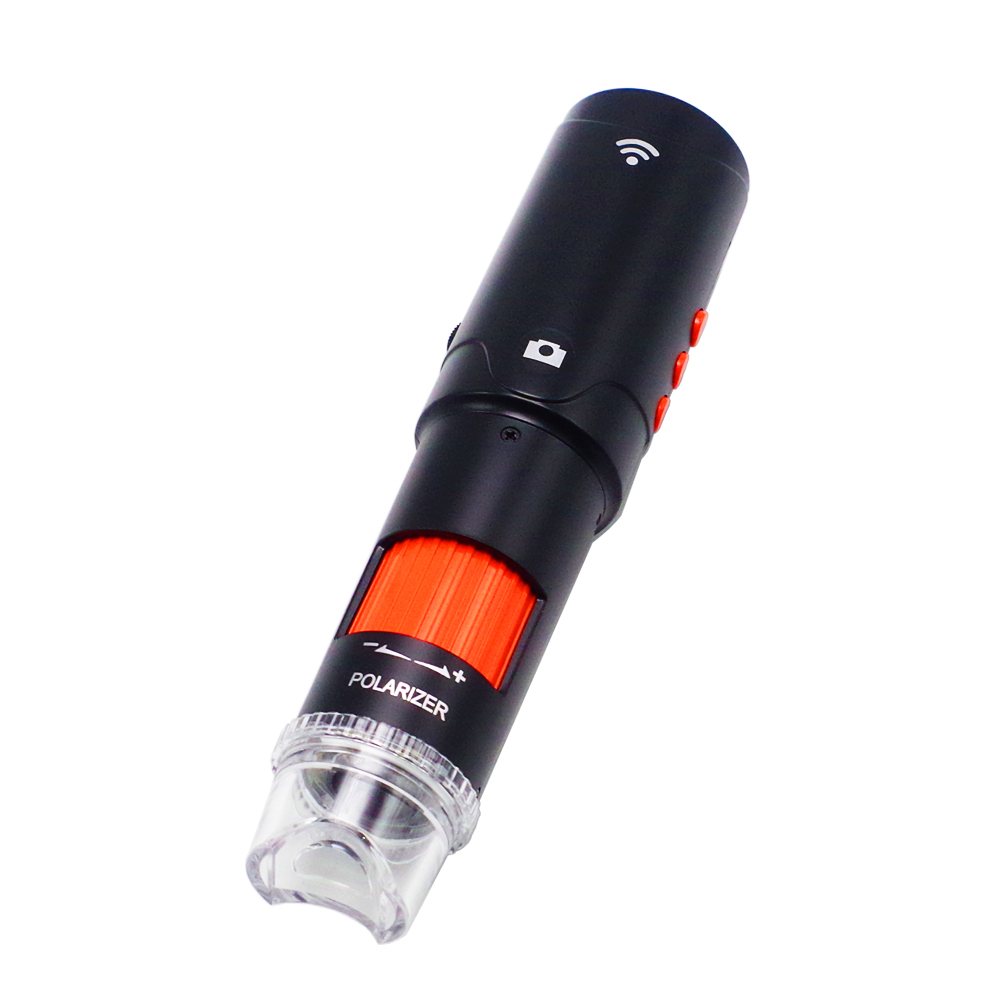

| Focus range | Manual, 0–110 mm |
| Lens | Optical glass |
| Illumination | 8 SMT white LEDs, brightness adjustable |

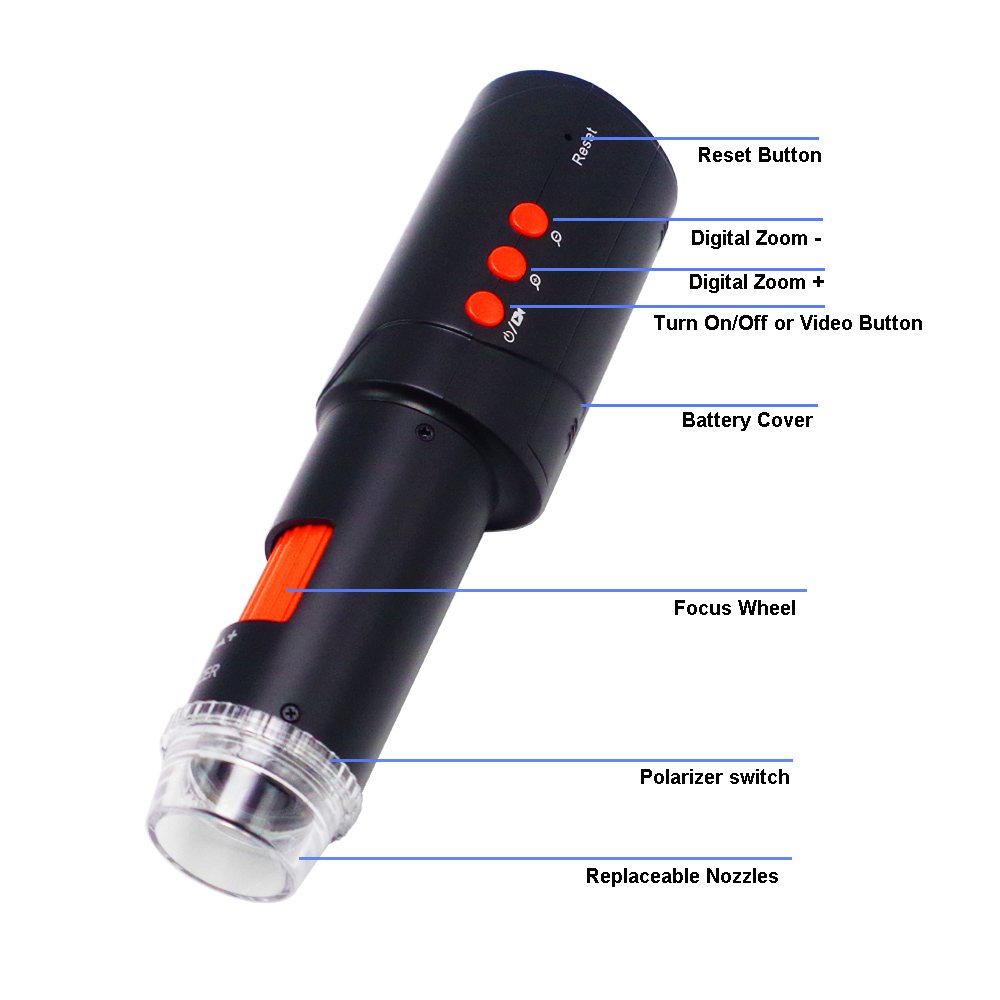

| Polarizer | Switchable, on-body |
| Connection | WiFi to smart devices / USB 2.0 to PC |
| Supported systems | iOS 12+ · Android 4.2+ · Windows 7/8/10/11 · macOS 11+ |
| Battery | 18650 lithium-ion 2000 mAh, rechargeable & replaceable |
| Working / charging time | 2.5 h continuous / 2.5 h |
| Body dimensions | 166 × 45 × 40 mm |
| Gross weight | 0.2 kg (unit) / 0.65 kg (gift box) |

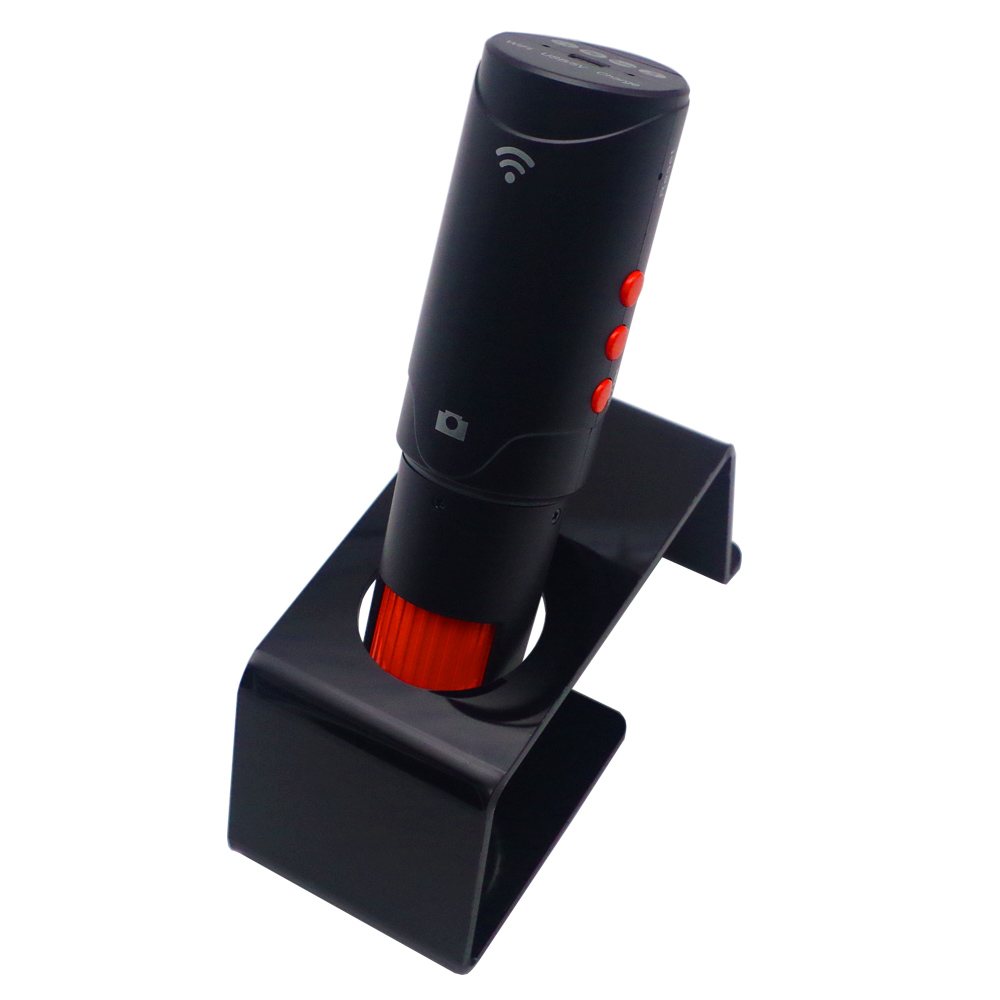

| Standard accessories | Metal stand, USB cable, calibration ruler, quick start guide |
| Certification | CE / FCC / RoHS |
| Customisation | OEM / ODM / OBM — logo, packaging, firmware, app |
| Warranty | 1 year |
Solder joint inspection, BGA rework verification and connector checks — the polarizer kills glare from lead-free solder and flux residue.
Coin grading, hallmark reading, gemstone inclusions and watch movements — wireless operation suits trade shows and shop counters alike.
One unit projected to a whole classroom, or packed into a field kit — no outlet, no laptop, no setup ritual.
iOS 12 or later, Android 4.2 or later over WiFi, and Windows 7/8/10/11 plus macOS 11 or later over USB. In practice that covers well over 90% of phones, tablets and computers in the field today.
Yes. OEM starts with laser-etched logo, custom gift box, printed manual and a branded app splash screen. Full ODM — enclosure changes, firmware defaults, ISP tuning and a fully customised application — is available for volume programmes. See the software page for app and SDK options.
The UB-DM050U trades wireless freedom for higher resolution and is happiest fixed to a bench. The DM023A wins when the inspection has to move. Many distributors stock both — tell us your use case and we will recommend honestly.
